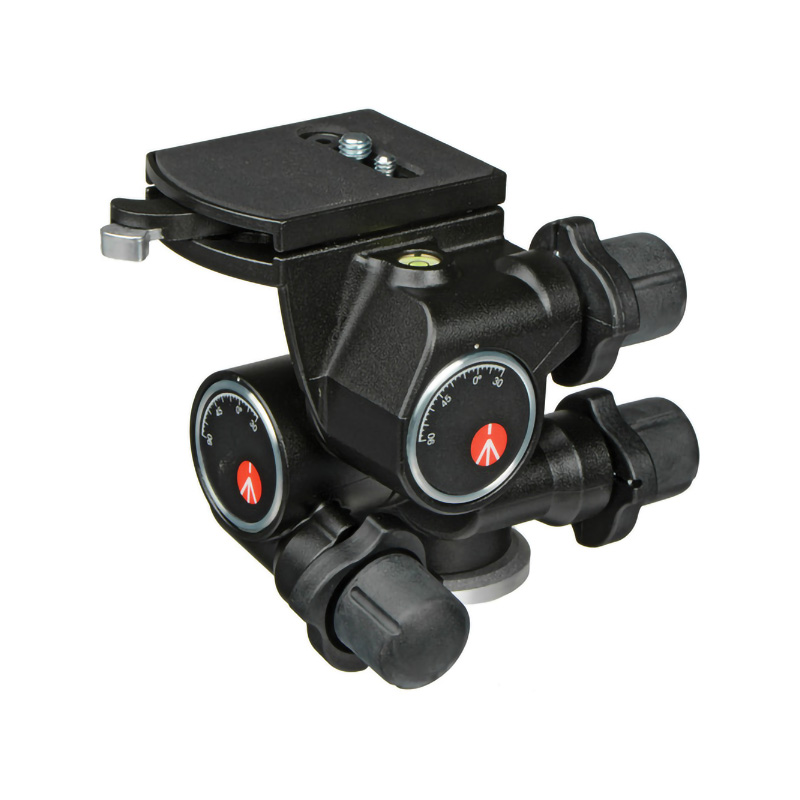

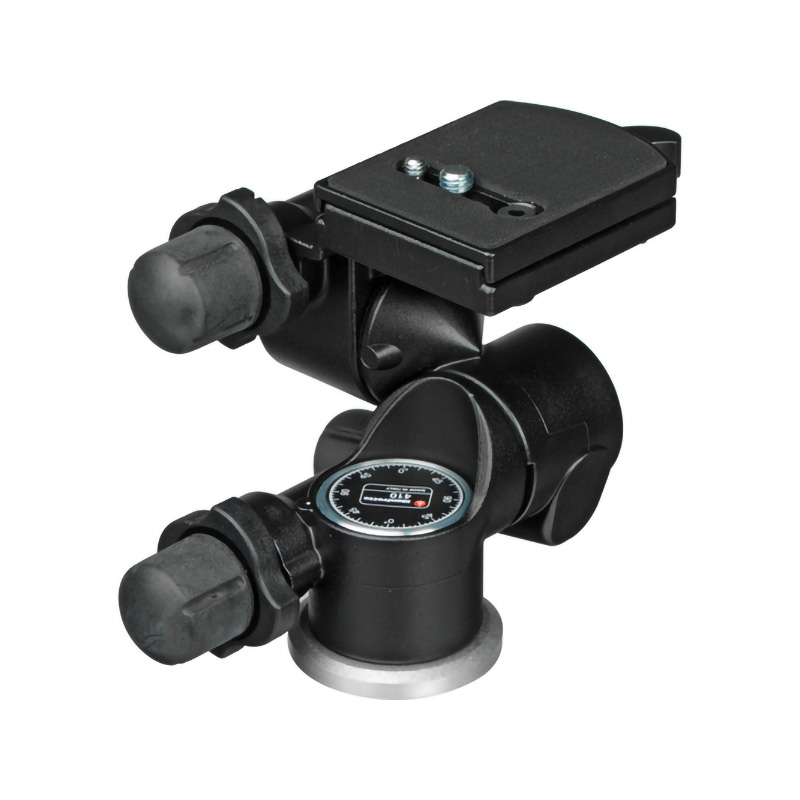

Manfrotto 410 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate

Description

This 410 3-Way, Geared Pan-and-Tilt Head from Manfrotto has a load capacity of 11.0 lb and can be attached to tripods or other support systems that feature a 3/8″-16 mount. It includes an integrated RC4 quick release cam lock and a 410PL Quick Release Plate. RC4 compatible quick release plates such as the 410PL can removed from the head by pulling the cam lock’s spring-loaded lever, which also allows the plate to be instantly reattached.

Cameras or accessories that are compatible with a 1/4″-20 or 3/8-16″ mount can be connected to the 410PL Quick Release Plate, which measures 2.5 x 3.3 x 0.5″ and has a rubberized, non-slip surface. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other and have individual, snap-lock knobs with easy-to-turn, 4-star grips. Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place. An additional, rubberized knob set within each snap-lock knob allows incremental, geared adjustments, which help to ensure that any device mounted to this 410 3-Way, Geared Pan-and-Tilt Head is precisely positioned relative to the subject.

To further promote fast and repeatable device positioning, this 410 3-Way, Geared Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility.

410 3-Way, Geared Pan-and-Tilt Head

• 11.0 lb load capacity
• Compatible with tripods or support systems that feature a 3/8″-16 mount
• Can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation
• Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and have individual snap-lock knobs with easy-to-turn, 4-star grips
• Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place
• An additional, rubberized knob set within each snap-lock knob allows incremental, geared adjustments
• Dedicated angle scales for each movement that are designed for easy visibility further promote fast, repeatable, and accurate device positioning
• Integrated, RC4 quick release cam lock
• Built-in bubble level
• Durable, aluminum-alloy construction

410PL Quick Release Plate

• Compatible with Manfrotto RC4 quick release cam lock
• Measures 2.5 x 3.3 x 0.5″ and has a rubberized, non-slip surface
• 1/4″-20 and 3/8″-16 mount
• Durable, aluminum-alloy construction
