Description

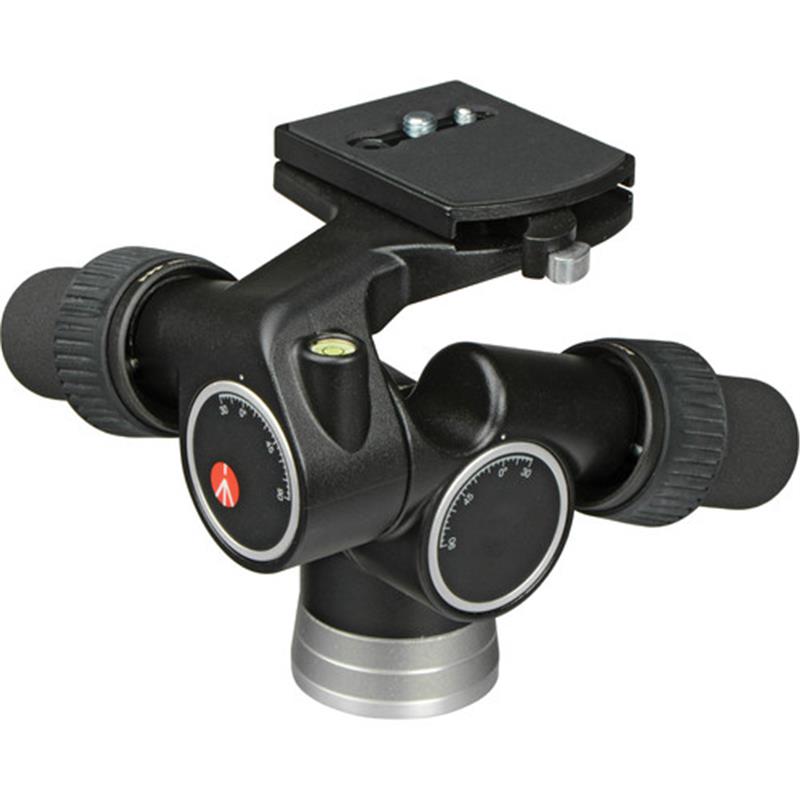

This 405 3-Way, Geared Pan-and-Tilt Head from Manfrotto has a load capacity of 16.5 lb and can be attached to tripods or other support systems that feature a 3/8″-16 mount. It includes an integrated RC4 quick release cam lock and a 410PL Quick Release Plate. RC4 compatible quick release plates such as the 410PL can removed from the head by pulling the cam locks spring-loaded lever, which also allows the plate to be instantly reattached.
Cameras or accessories that are compatible with a 1/4″-20 or 3/16″-20 mount can be connected to the 410PL Quick Release Plate, which measures 2.5 x 3.3 x 0.5″ and has a rubberized, non-slip surface. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other and have individual, snap-lock knobs with easy-to-turn, fluted grips. Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place. An additional, rubberized knob set within each snap-lock knob allows incremental, geared adjustments, which help to ensure that any device mounted to this 405 3-Way, Geared Pan-and-Tilt Head is precisely positioned relative to the subject.
To further promote fast and repeatable device positioning, this 405 3-Way, Geared Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility.
405 3-Way, Geared Pan-and-Tilt Head
- 16.5 lb load capacity
- Compatible with tripods or support systems that feature a 3/8″-16 mount
- Can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation
- Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and have individual snap-lock knobs with easy-to-turn, fluted grips
- Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place
- An additional, rubberized knob set within each snap-lock knob allows incremental, geared adjustments
- Dedicated angle scales for each movement that are designed for easy visibility further promote fast, repeatable, and accurate device positioning
- Integrated, RC4 quick release cam lock
- Two bubble levels for landscape orientations and one bubble level for portrait orientations
- Durable, aluminum-alloy construction
410PL Quick Release Plate
- Compatible with Manfrotto RC4 quick release cam lock
- Measures 2.5 x 3.3 x 0.5″ and has a rubberized, non-slip surface
- 1/4″-20 and 3/8″-16 mount
- Durable, aluminum-alloy construction
