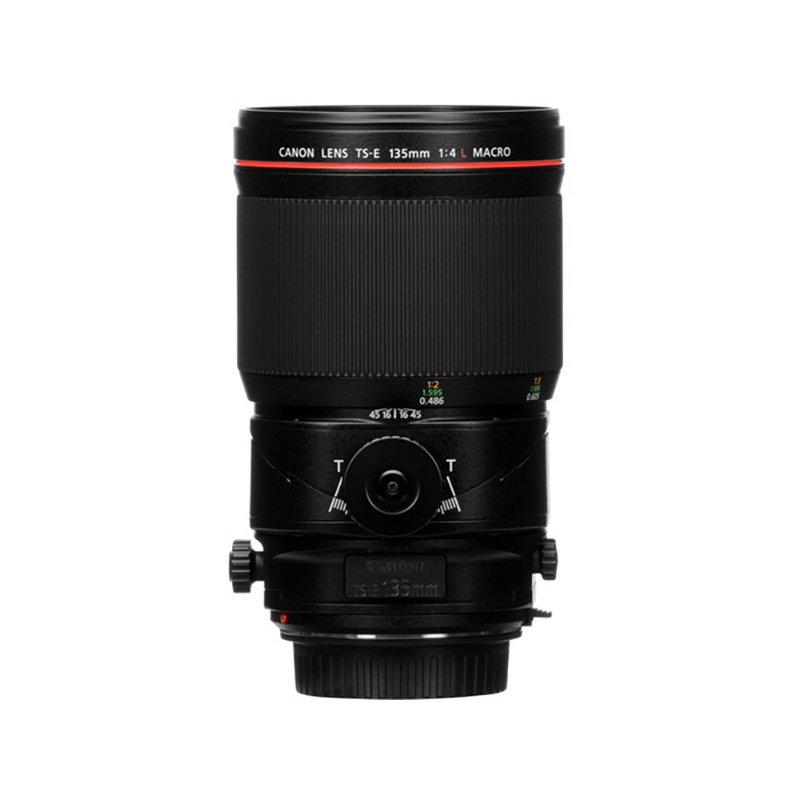

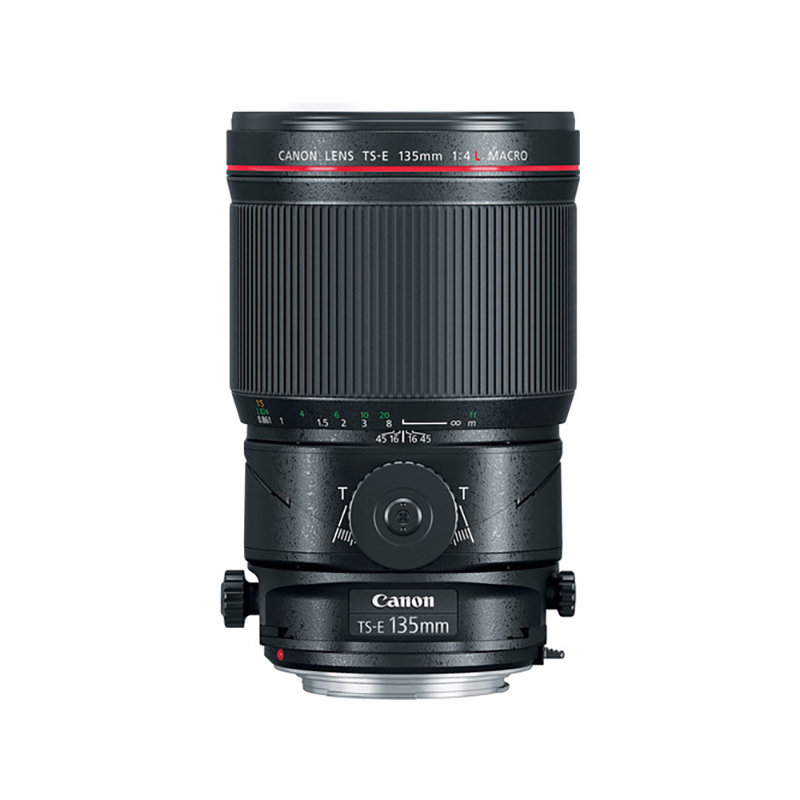

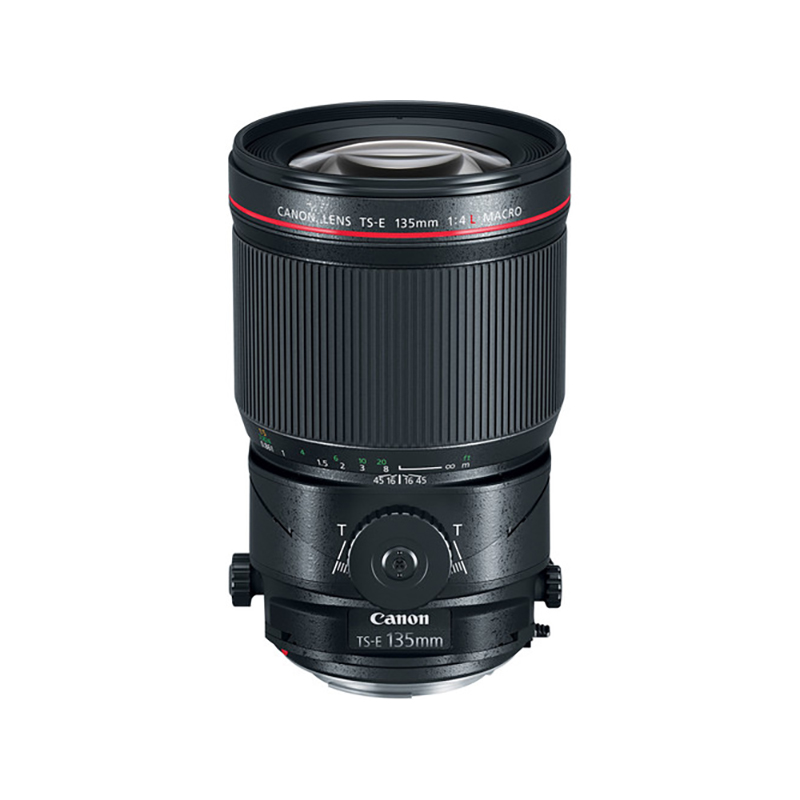

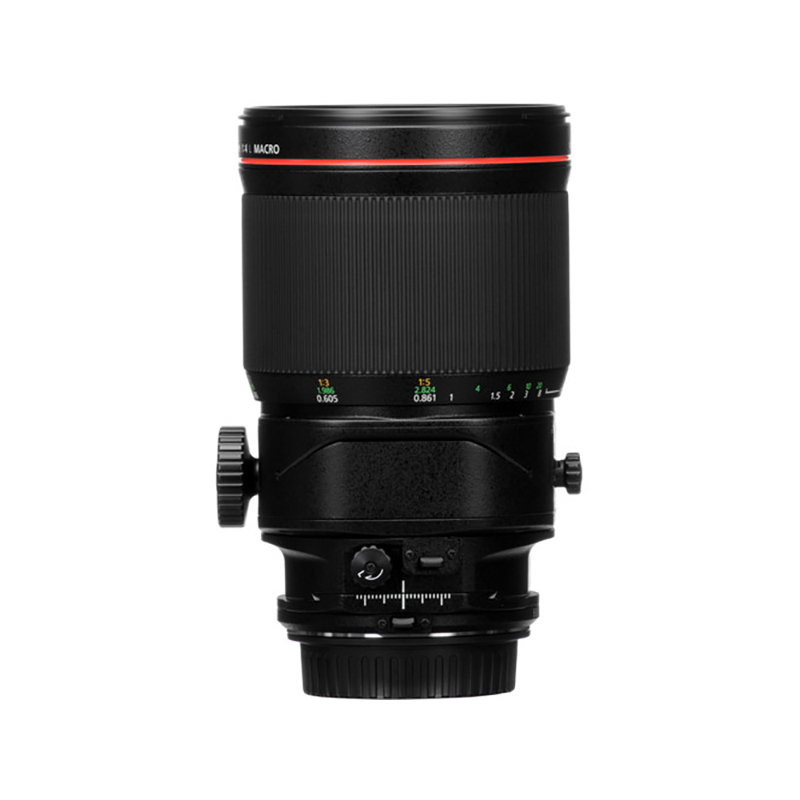

Canon TS-E 135mm f/4L Macro Tilt-Shift Lens

Category: Lenses SKU: TS13540LM Tag: Canon

Key Features

EF-Mount Lens/Full-Frame Format
Aperture Range: f/4 to f/45
Two Ultra-Low Dispersion Elements
Subwavelength Coating
Maximum Tilt: +/- 10°
Maximum Shift: +/- 12mm
Mount Rotation: +/- 90°
Locking Tilt-Shift Mechanism
Minimum Focusing Distance: 1.6′
Maximum Magnification: 0.5x

$4,099.00

Available on backorder

Payment Options

Description

A unique telephoto offering close focus control along with perspective control capabilities the TS-E 135mm f/4L Macro from Canon is a tilt-shift lens well-suited for studio, product, and tabletop photography. Up to +/- 10° of tilt is possible, for focus control, and +/- 12mm of shift, to adjust perspective and composition, and a tilt-locking mechanism can be used while shooting for more stability. A minimum focus distance of 1.6′ and a maximum magnification of 0.5x are also benefitted by the range of movements for more control over depth of field when photographing close-up subjects.

Complementing the operation of the lens, this L-series prime is also distinguished by its optical design that features a pair of Ultra-Low Dispersion elements to significantly reduce color fringing and chromatic aberrations for high clarity. Individual elements also feature a Subwavelength Coating to suppress flare and ghosting for greater contrast and color neutrality.

Perspective control, tilt-shift lens affords +/- 12mm of shift and +/- 10° of tilt, and both types of movements can be applied independently, and parallel or perpendicular to one another. Additionally, the tilt and shift functions can be rotated +/- 90° in any direction for applying the movements in distinct directions.
Tilt-locking mechanism and a large tilt knob benefit operation and ensure the lens stays in place while shooting.
Two Ultra-Low Dispersion (UD) elements help to reduce color fringing and chromatic aberrations for improved clarity and color accuracy.
A Subwavelength Coating has been applied to lens elements to minimize surface and internal reflections for a marked reduction in lens flare and ghosting when working in strong lighting conditions.
A minimum focusing distance of 1.6′ along with a maximum magnification of 0.5x benefits working with close-up subjects.
Rounded nine-blade diaphragm contributes to a pleasing out of focus quality that benefits the use of shallow depth of field techniques.

Additional information

Weight	3 kg

Focal Length	135mm
Maximum Aperture	f/4
Minimum Aperture	f/45
Lens Mount	Canon EF
Format Compatibility	Full-Frame
Angle of View	18°
Tilt-Shift	+/- 10° Tilt +/- 12 mm Shift
Minimum Focus Distance	1.61\' / 49 cm
Maximum Magnification	0.5x
Macro Reproduction Ratio	1:2
Optical Design	11 Elements in 7 Groups
Diaphragm Blades	9, Rounded
Focus Type	Manual Focus
Image Stabilization	None
Filter Size	82 mm (Front)
Dimensions (ø x L)	3.48 x 5.48\" / 88.5 x 139.1 mm
Weight	2.43 lb / 1.1 kg
